Power indicator Gauge
Openhasp device
My openHASP control panels have been eye catchers on my desk for years now. I've been using the WT32-SC01 Plus one for over a year to keep an eye on the electric power use in our house.
I designed a fancy power dial with extra arc indicators on the outside and a dynamic list of the biggest power consumers in the middle..
The idea
I had this idea of using a classic needle gauge to show the momentary power level, and add a few colored arcs to the sides to visualize these things:
- Momentary total power consumed by all devices
- In green, the solar production arcs up from the left side, if this arc matches the needle, or goes above it, all is good.
- In red, the power used from the grid, ideally no red line appears at all!
- In magenta, the power injected to the grid arcs from the right side back to the left. If its length is equal to the green arc, we're injecting all solar production.
- In turquoise, the solar power used for charging the car is shown arcing from the right. If there's more solar than the car can handle, a piece of magenta might pop over it at the bottom.
Concept diagram

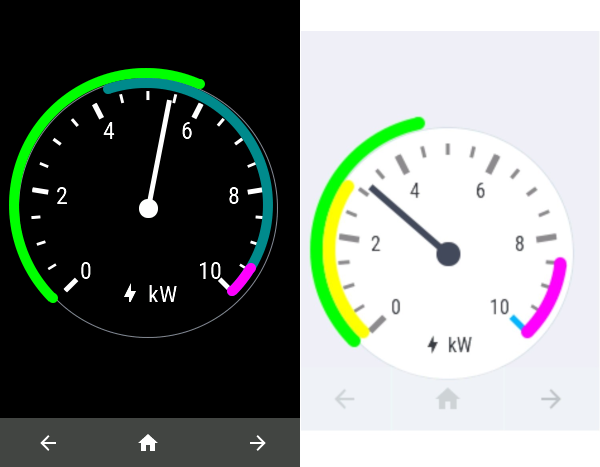

Here are some early screenshots of the prototypes:
Screenshots
I added a top 4 of the biggest consumers along with progress bars representing their relative demand (including colors, car solar use is blue!). I got this idea from Sean Blanchfield's blog post on Real Time Device Power Meter for Home Assistant. I have the same view on my Home assistant dashboard using the widget mentioned on that post, and it's so nice it shouldn't be missing from my openHASP page!

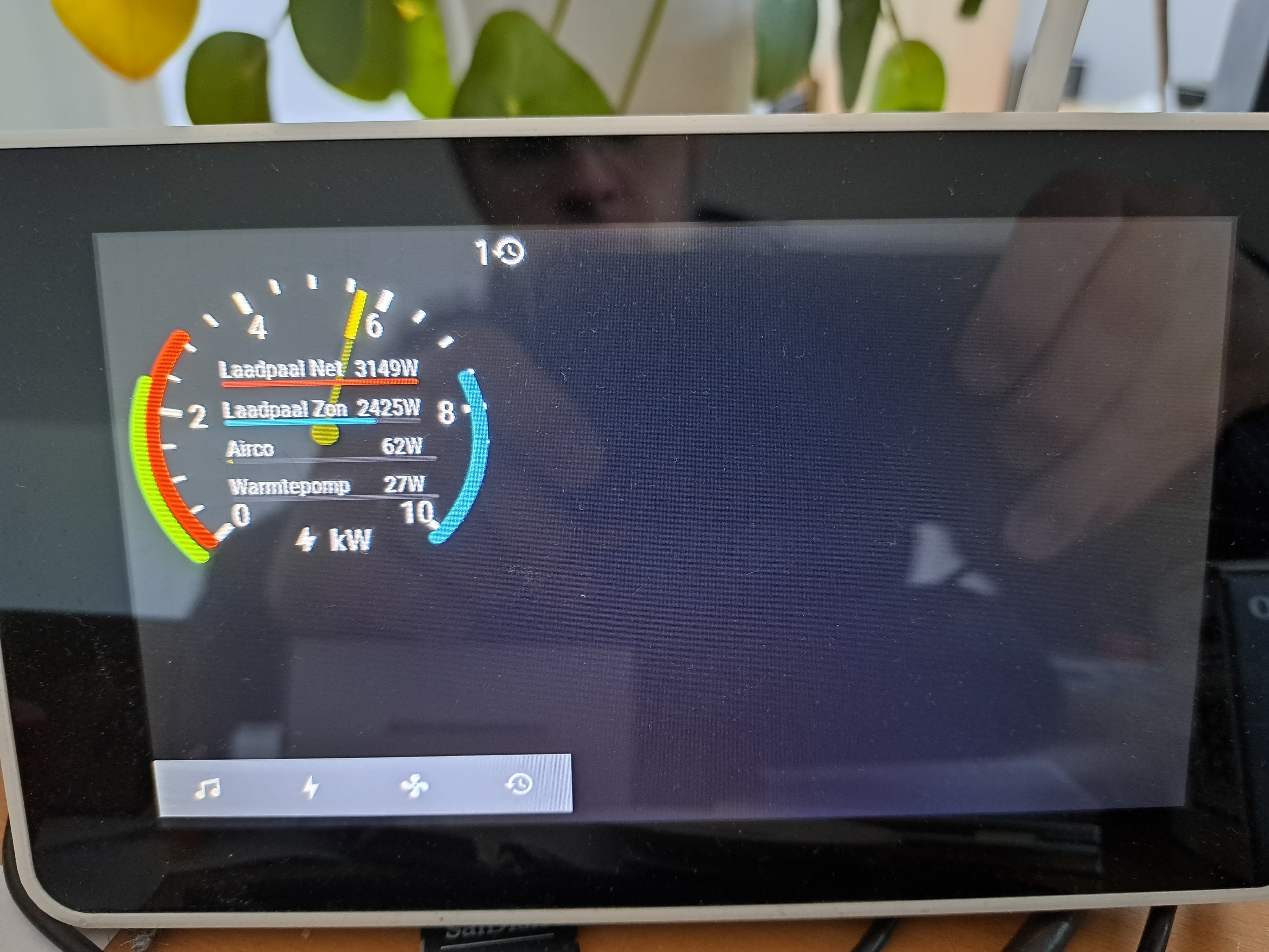

Raspberrypi running openHASP showing the consumers.
Hardware
I had WT32-SC01 board, it's a nice display with a capacitive touchscreen layer, way better than the resistive ones on my previous builds. I wanted to use the same shaped enclosure as my my other openhasp builds and found this WT32-SC01-Plus Stand With Socket enclosure on printables.com.
Appdaemon automation
This appdaemon script monitors the homeassistant entities, and will publish messages to the MQTT server to update the openHASP widget state to reflect the new values.
The appdaemon apps.yaml creates an instance of the automation and sets the parameters. Note that in the YAML snipet below there are some YAML merge keys and reference labels to reuse parts of the yaml configuration.
powerconsumers_desk:
<<: *plate_desk
page: 2
<<: &powerconsumers
module: powerconsumers
class: PowerConsumers
widget_start_id: 42
widgets: 4
sensors: &power_sensors
sensor.sdm120_2_power: Airco
sensor.warmtepomp_int_power: WP Weerstand
sensor.sdm120_1_power: Warmtepomp
sensor.tuinhuis_power: Tuinhuis
sensor.car_solar_power_2: Laadpaal Zon
sensor.car_grid_power_2: Laadpaal Net
sensor.nikoplug_power: Ventilatie
sensor.badkamer_chauffage_power: Badkamer
sensor.kitchen_1_power: Keuken-ww
sensor.kitchen_2_power: Keuken l
sensor.droogkast_power: Droogkast
sensor.wasmachine_power: Wasmachine
sensor.veranda_power: Veranda
sensor.fornuis_power: Kookvuur
sensor.oven_power: Oven
sensor.berging_power: Diepvries
force_bar_color:
"Laadpaal Zon": "#008b8b"
The implementation in Python:
import appdaemon.plugins.hass.hassapi as hass
from decimal import Decimal
from datetime import timedelta, datetime
import mqttapi as mqtt
default_colors = (
(0, 2, '#6f706f'),
(2, 10, '#0c7600'),
(10, 50, '#537600'),
(50, 200, '#767200'),
(200, 500, '#765500'),
(500, 1000, '#763500'),
(1000, 3000, '#761400'),
(3000, 10000, '#760000'),
)
class PowerConsumers(hass.Hass, mqtt.Mqtt):
@property
def force_bar_color(self):
return self.args.get('force_bar_color',{})
@property
def widget_start_id(self):
return self.args['widget_start_id']
@property
def widgets(self):
return int(self.args['widgets'])
@property
def device_topic(self):
return self.args['device_topic']
@property
def sensors(self):
return self.args["sensors"]
@property
def lwt_topic(self):
return self.args["lwt_topic"]
@property
def page(self):
return self.args['page']
@property
def colors(self):
return self.args.get('colors',default_colors)
def validate_args(self):
assert isinstance(self.colors, list) or isinstance(self.colors, tuple), f"colors must be a list or tuple"
for value in self.colors:
assert isinstance(value, list) or isinstance(value, tuple), f"list entry {value} should be a list or tuple"
assert isinstance(value[0], int), f"list entry {value[0]} should be a number"
assert isinstance(value[1], int), f"list entry {value[1]} should be a number"
assert isinstance(value[2], str), f"list entry {value[2]} should be a string"
assert value[2].startswith("#"), f"list entry {value[2]} should be a HTML color"
assert len(value[2])==7, f"list entry {value[2]} should be a HTML color"
def update(self, entity, attribute, old, new, cb_args):
self.log(f"got update for {entity}: {new}")
new = int(float(new))
self.db[entity] = new
self.redraw()
def redraw(self):
print("redrawing!")
if len(self.db) == 0:
return
highest = max((float(v) for v in self.db.values()))
to_show = list(reversed(sorted(self.db.items(), key=lambda x:x[1])))
to_show = list(to_show)[0:self.widgets]
for i, (e, v) in enumerate(to_show):
try:
self.publish_entry(i, self.sensors[e], float(v)*100/highest, v)
except ZeroDivisionError:
pass
def watt_to_color(self, watt):
for start, end, color in self.colors:
if watt > end:
continue
if watt < end:
return color
return self.colors[0][2]
def publish_entry(self, index, name, percent, value):
topic = f"hasp/{self.device_topic}/command/p{self.page}b{self.widget_start_id+3*index+0}.val"
self.call_service("mqtt/publish", topic=topic, payload=f"{percent}")
if name in self.force_bar_color.keys():
color = self.force_bar_color[name]
else:
color = self.watt_to_color(value)
self.call_service("mqtt/publish", topic=f"hasp/{self.device_topic}/command/p{self.page}b{self.widget_start_id+3*index+0}.bg_color10", payload=color)
self.call_service("mqtt/publish", topic=f"hasp/{self.device_topic}/command/p{self.page}b{self.widget_start_id+3*index+1}.text", payload=name)
self.call_service("mqtt/publish", topic=f"hasp/{self.device_topic}/command/p{self.page}b{self.widget_start_id+3*index+2}.text", payload=f"{value}W")
def initialize(self):
self.db = {}
self.mqtt = self.get_plugin_api("MQTT")
self.validate_args()
for entity_name in self.sensors.keys():
try:
self.db[entity_name] = int(float(self.get_state(entity_name)))
except Exception as e:
self.log(f"can't retrieve entity {entity_name} on start")
self.listen_state(self.update, entity_name)
self.mqtt.listen_event(self.mqtt_message_received_event, "MQTT_MESSAGE", topic=self.lwt_topic)
def mqtt_message_received_event(self, event, data, kwargs):
#topic,message
assert event == "MQTT_MESSAGE"
self.log(f"MQTT {event} **{data}")
topic = data.get("topic")
payload = data.get('payload')
if payload.startswith("{"):
payload = json.loads(payload)
self.redraw()
OpenHASP design
This is the list of OpenHASP widgets that make up the plate's 'page' that displays the power gauge, it consists of JSON lines, one line per widget:
{"page":2,"comment":"---------- Page 2 ----------", "bg_color":"#000000", "swipe":1}
{"id":13,"obj":"gauge","x":20,"y":20,"w":260,"h":260, "min":0,"max":10000, "val":2000, "critical_value": 10000, "scale_end_color": "#FF0000", "format": 3, "bg_color":"000000", "scale_grad_color":"#ffffff", "scale_end_color":"#ffffff", "line_color10":"#ffff44","line_width10":5,"line_opa":255, "line_color":"#ffffff","line_color60":"#ffffff","scale_grad_color":"#ffffff","scale_grad_color60":"#ffffff","scale_end_color60":"#ffffff", "bg_color10":"#ffff44", "border_color20":"#000000"}
{"page":2,"id":17,"obj":"arc","x":6,"y":10,"w":270,"h":290,"min":0,"max":10000,"val":2000,"border_side":0,"type":0,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"false","line_width":21,"line_width10":10,"line_color10":"#00ff00","line_color20":"#ffffff","line_opa30":"0","bg_opa":0,"pad_top20":5,"pad_bottom20":5,"pad_left20":5,"pad_right20":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"page":2,"id":20,"obj":"arc","x":16,"y":10,"w":270,"h":270,"min":0,"max":10000,"val":3000,"border_side":0,"type":0,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"false","line_width":21,"line_width10":10,"line_color10":"#ffff00","line_color20":"#ffffff","line_opa30":"0","bg_opa":0,"pad_top20":5,"pad_bottom20":5,"pad_left20":5,"pad_right20":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"page":2,"id":18,"obj":"arc","x":16,"y":10,"w":270,"h":270,"min":0,"max":10000,"val":500,"border_side":0,"type":0,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"false","line_width":21,"line_width10":10,"line_color10":"#ff0000","line_color20":"#ffffff","line_opa30":"0","bg_opa":0,"pad_top20":5,"pad_bottom20":5,"pad_left20":5,"pad_right20":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"page":2,"id":25,"obj":"arc","x":16,"y":10,"w":270,"h":270,"min":0,"max":10000,"val":0,"border_side":0,"type":2,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"false","line_width":21,"line_width10":10,"line_color10":"#008b8b","line_color20":"#ffffff","line_opa30":"0","bg_opa":0,"pad_top20":5,"pad_bottom20":5,"pad_left20":5,"pad_right20":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"page":2,"id":19,"obj":"arc","x":16,"y":10,"w":270,"h":270,"min":0,"max":10000,"val":0,"border_side":0,"type":2,"rotation":0,"start_angle":135,"end_angle":45,"adjustable":"false","line_width":21,"line_width10":10,"line_color10":"#ff00ff","line_color20":"#ffffff","line_opa30":"0","bg_opa":0,"pad_top20":5,"pad_bottom20":5,"pad_left20":5,"pad_right20":5,"pad_bottom":5,"pad_left":5,"pad_right":5}
{"obj":"label","id":16,"x":0,"y":220,"w":300,"h":24,"text":"\uF40B kW","align":"center","text_color":"#ffffff","value_font":22,"bg_color":"#000000","bg_opa": "0","radius":0,"border_side":0}
{"page":2,"id":60,"obj":"obj","x":75,"y":75,"w":150,"h":150,"radius":1000,"border_color":"#000000","bg_opa10":188,"bg_color10":"#000000"}
{"obj":"bar","id":42,"x":80,"y":110,"w":140,"h":4, "border_width":0,"val":70,"bg_color10":"#a83232", "bg_color":"#111111","radius10":5,"radius00":5}
{"obj":"label","id":43,"x":80,"y":89,"w":139,"h":20,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"Warmtepomp hitte","text_font":16,"align":"left"}
{"obj":"label","id":44,"x":80,"y":90,"w":140,"h":20,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"10W","text_font":16,"align":"right"}
{"obj":"bar","id":45,"x":80,"y":140,"w":140,"h":4, "border_width":0,"val":50,"bg_color10":"#3ea832", "bg_color":"#111111","radius10":5,"radius00":5}
{"obj":"label","id":46,"x":80,"y":120,"w":139,"h":20,"bg_color":"#111111","border_color":"#C7BAA7","border_width":0,"text":"Thuinhuis","text_font":16,"align":"left"}
{"obj":"label","id":47,"x":80,"y":120,"w":140,"h":20,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"20W","text_font":16,"align":"right"}
{"obj":"bar","id":48,"x":80,"y":170,"w":150,"h":4, "border_width":0,"val":20,"bg_color10":"#a8a432", "bg_color":"#111111","radius10":5,"radius00":5}
{"obj":"label","id":49,"x":80,"y":150,"w":139,"h":20,"bg_color":"#111111","border_color":"#C7BAA7","border_width":0,"text":"Keuken","text_font":16,"align":"left"}
{"obj":"label","id":50,"x":80,"y":150,"w":140,"h":20,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"30W","text_font":16,"align":"right"}
{"obj":"bar","id":51,"x":80,"y":200,"w":150,"h":4, "border_width":0,"val":20,"bg_color10":"#a8a432", "bg_color":"#111111","radius10":5,"radius00":5}
{"obj":"label","id":52,"x":80,"y":180,"w":139,"h":20,"bg_color":"#111111","border_color":"#C7BAA7","border_width":0,"text":"Keuken","text_font":16,"align":"left"}
{"obj":"label","id":53,"x":80,"y":180,"w":140,"h":20,"bg_color":"#000000","border_color":"#C7BAA7","border_width":0,"text":"30W","text_font":16,"align":"right"}
{"page":2,"id":61,"obj":"obj","x":0,"y":0,"w":320,"h":420,"border_opa":0, "border_color":"#000000","bg_opa10":0,"bg_color10":"#ffffff", "swipe":1}
{"page":0,"comment":"---------- All pages ----------","swipe":1}
{"page":0,"obj":"btn","id":1,"x":0, "y":420,"w":80,"h":50,"opacity":255,"text":"\uE75A","radius":0,"border_width":"0","bg_color":"#444444","text_font":24,"action":"p1","text_color":"#ffffff"}
{"page":0,"obj":"btn","id":2,"x":80,"y":420,"w":80,"h":50,"opacity":255,"text":"\uF40B","radius":0,"border_width":"0","bg_color":"#44444","text_font":24,"text_color":"#ffffff", "action":"p2"}
{"page":0,"obj":"btn","id":3,"x":160,"y":420,"w":80,"h":50,"opacity":255,"text":"\uE210","radius":0,"border_width":"0","bg_color":"#444444","text_font":24,"text_color":"#ffffff","action":"p3"}
{"page":0,"obj":"btn","id":5,"x":240,"y":420,"w":80,"h":50,"opacity":255,"text":"\uE2DA","radius":0,"border_width":"0","bg_color":"#444444","text_font":24,"text_color":"#ffffff","action":"p4"}
{"page":0, "obj":"label","id":4,"x":0,"y":0,"w":300,"h":30,"text":"?\uE2DA","value_font":22,"bg_color":"#000000", "text_color":"#ffffff", "bg_opa": 0,"radius":0,"border_side":0, "align":"right"}
Home assistant dashboard equivalent

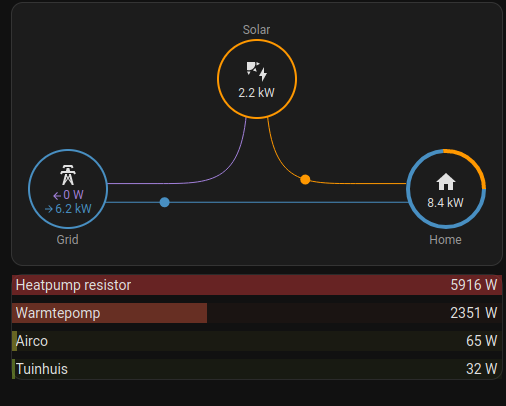

Home assistant power visualisation using bar-card and custom template card.
Check out my article on the modbus current clamps to see how I measure the power on several of the breaker circuits of my house and how to add a similar bar card visualisation.
Chores

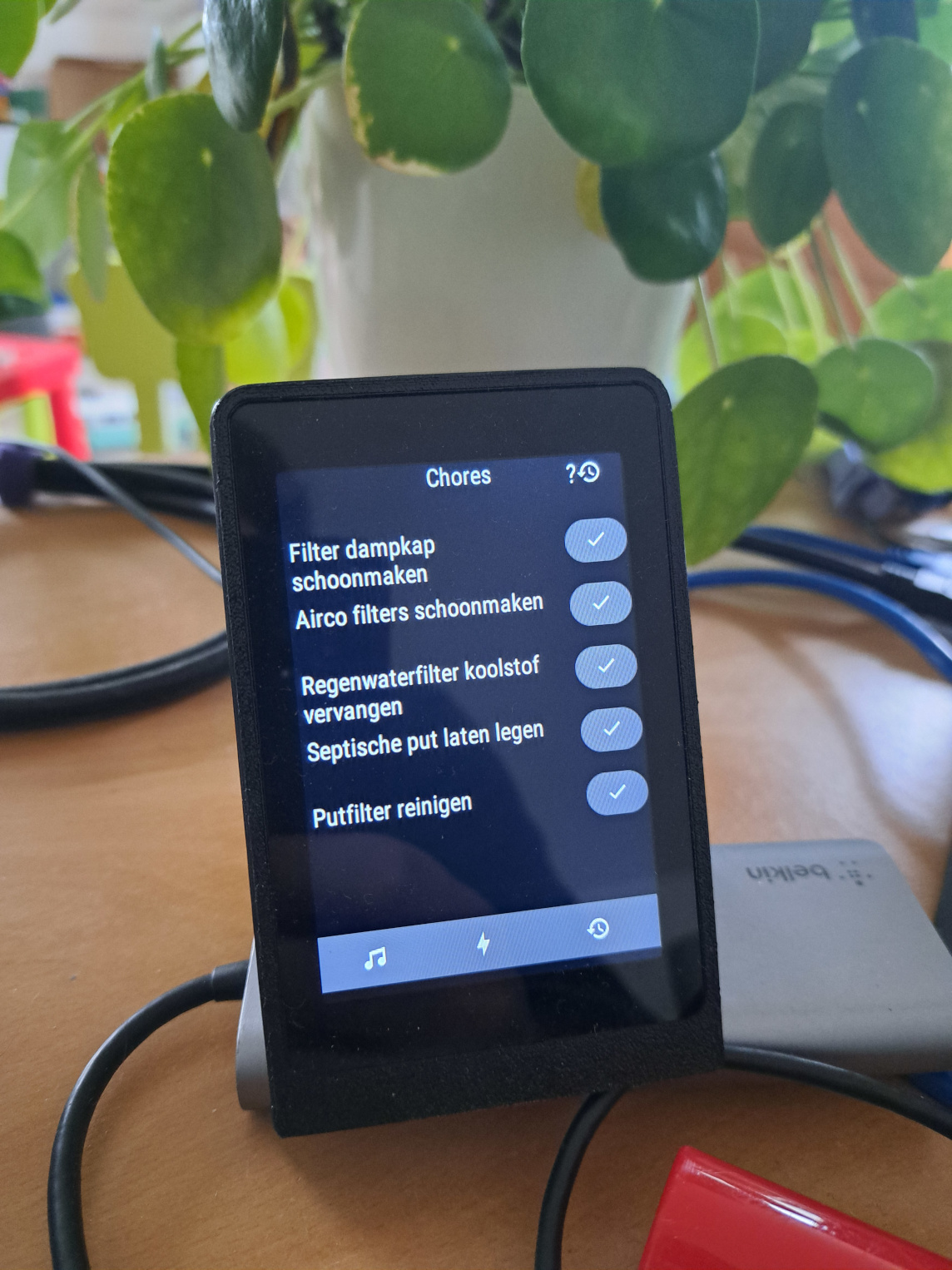

I also added a page to the openHASP displaying the periodical house chores tracked in Grocy. This deserves its own article actually!
chores
