DIY Automatic condensation water pump

Installed device

In 2015 we moved into a house which had a condensing gas boiler. When the previous owners installed it, they never installed a drain pipe to dispose of the water that it produces. Instead there was... a bucket that had to be emptied every week. I quickly grew tired of emptying the bucket. With no obvious way to direct the water except over the ceiling, I needed a device that would pump the water. This sounded like a fun DIY project, so I ordered some float switches and a 12VDC membrane pump, then got busy and soldered a simple set/reset controller with... Guess which old-school IC...

The mechanics and electrics

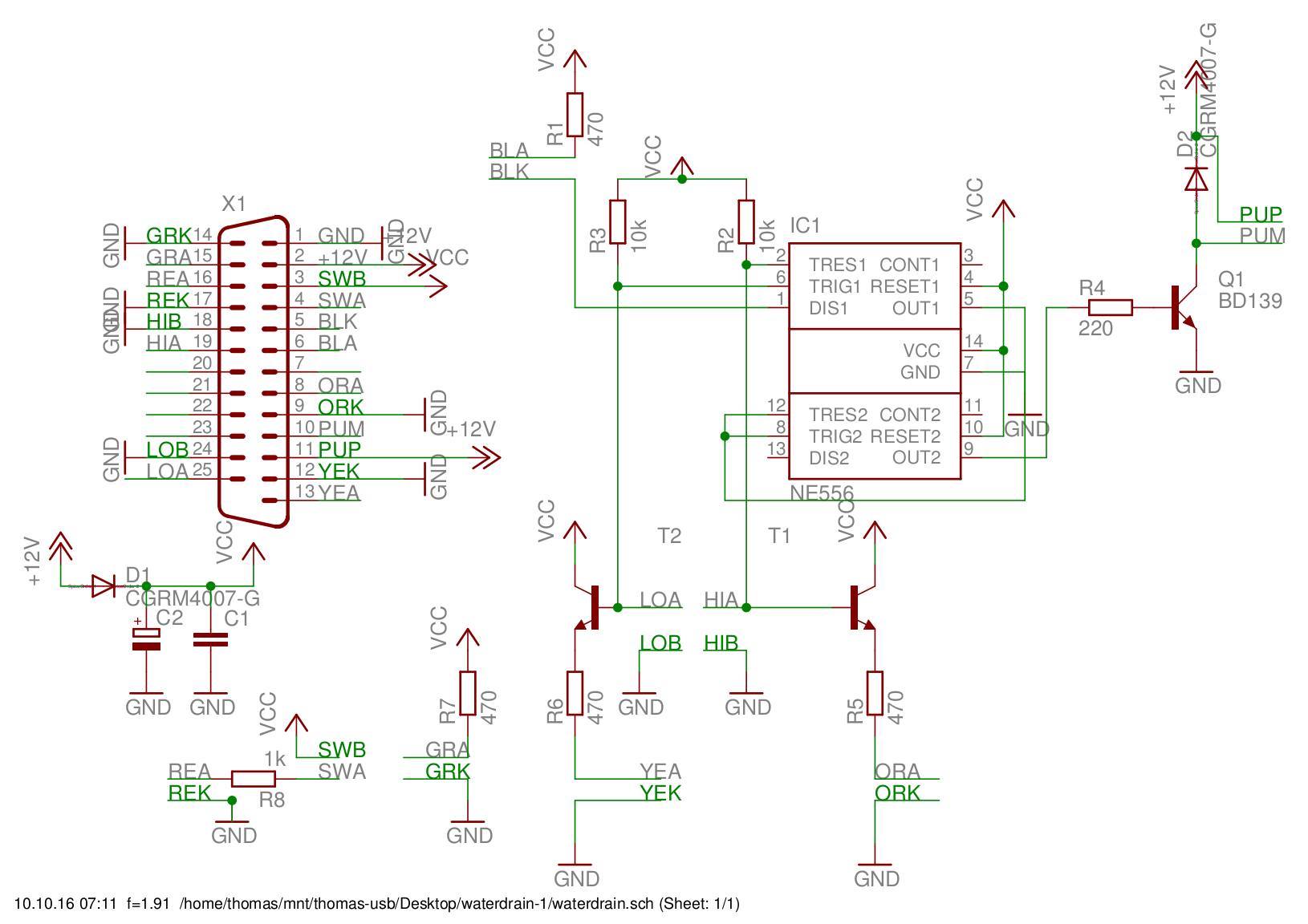

The circuit connects the two float switches to the Set and Reset of the NE555's flipflop. Actually I used a dual 555 IC, with the plan to use the second 555 as an alarm timer that would go off if the pump would be running longer than a determined time period. I used the second 555 as an inverter though, so I never implemented that feature.

schematic

I fitted a jerry can with pump and level switches.

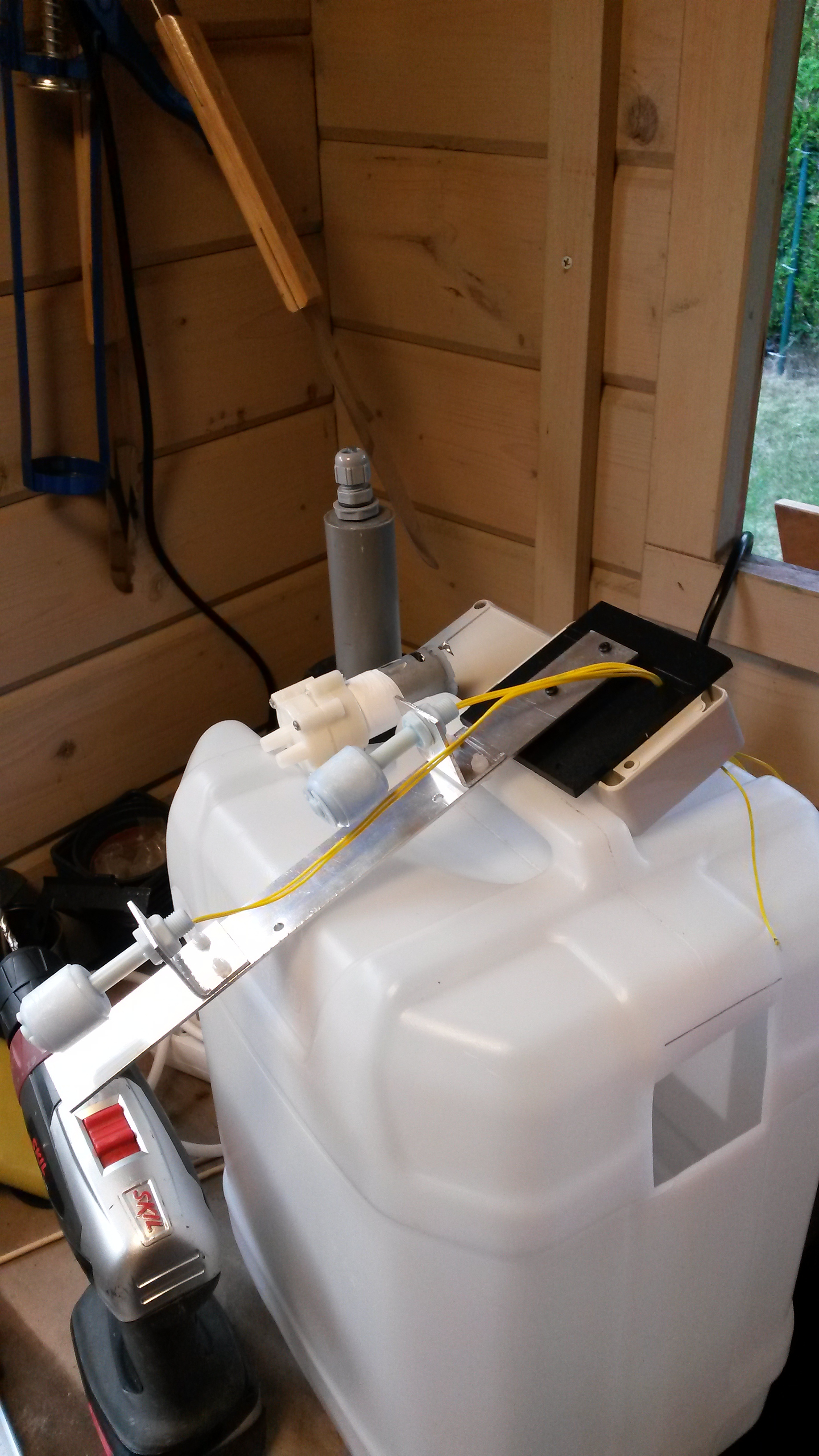

preparing to mount float switches in hdpe jerry can

preparing to mount float switches in hdpe jerry can

I wanted to make it fail-safe if one of the hoses to the pump starts to fail, so I made an airtight enclosure for the pump and suspended it in the container via the inside of the jerry can handle.

The water is pumped out via a short piece of aluminium tube in the jerry can's screw cap on top.

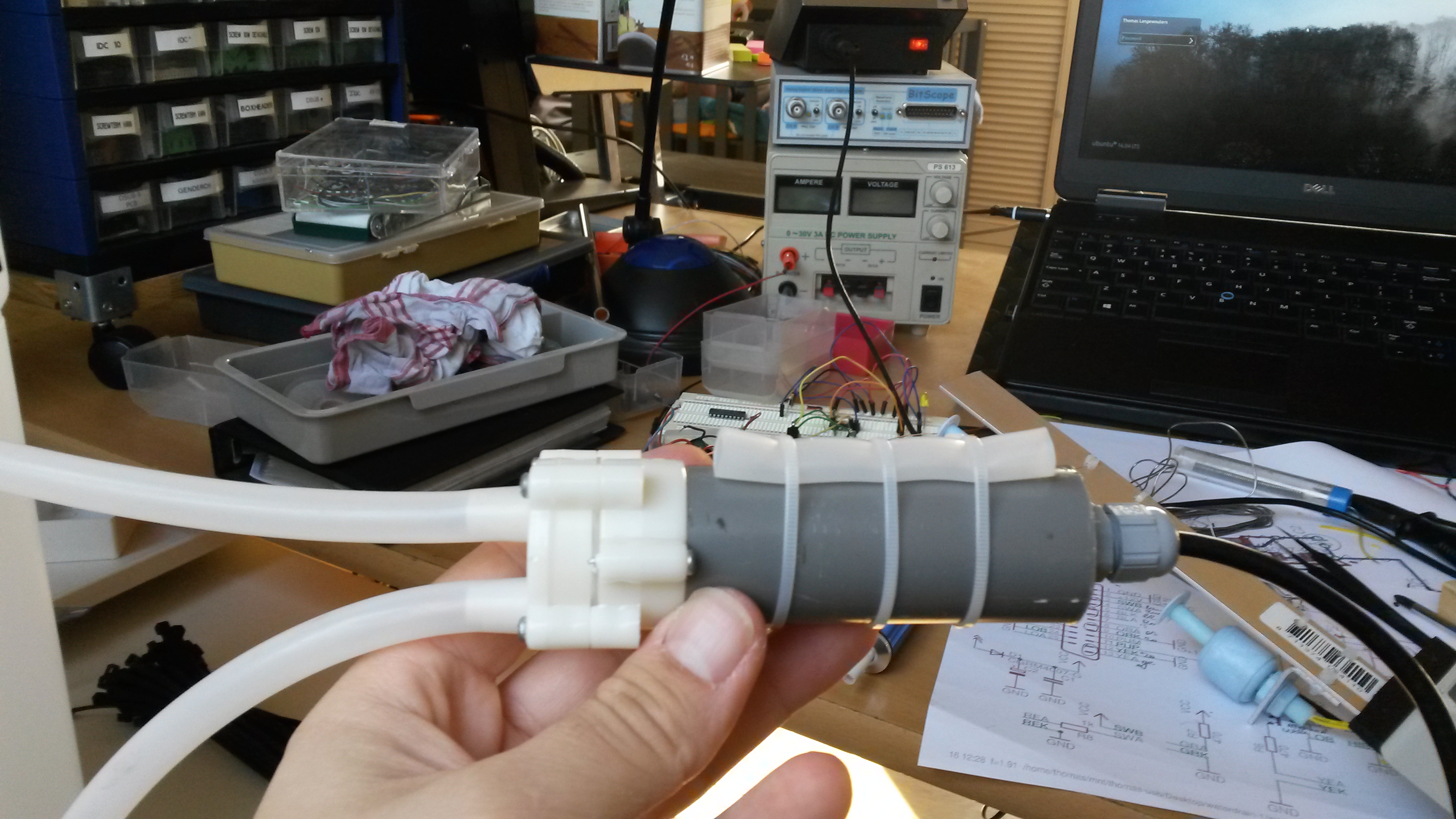

airtight enclosed 12VDC pump

airtight enclosed 12VDC pump

I felt like using two float switches, so I did...

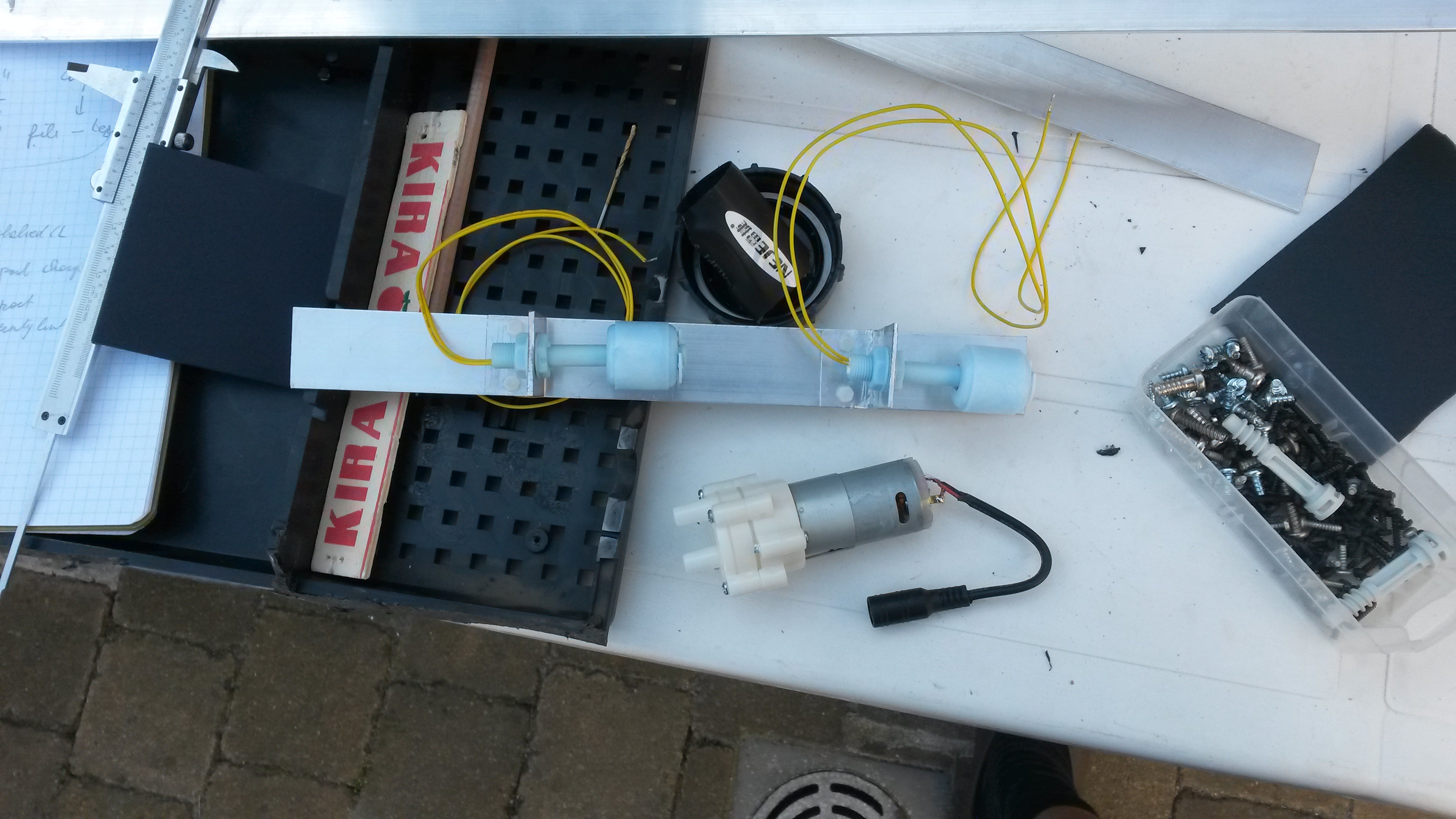

preparing float switches

preparing float switches

The electronics/controller

I wanted to build a simple controller that could later be easily upgraded and serviced, so I exposed all signals on a 25pin DSUB connector. This way, I could add more fancy features later if I wanted, like an alarm if the pump would stall, or detect pump failure by measuring current.

mounted controller indicator lights

mounted controller indicator lights

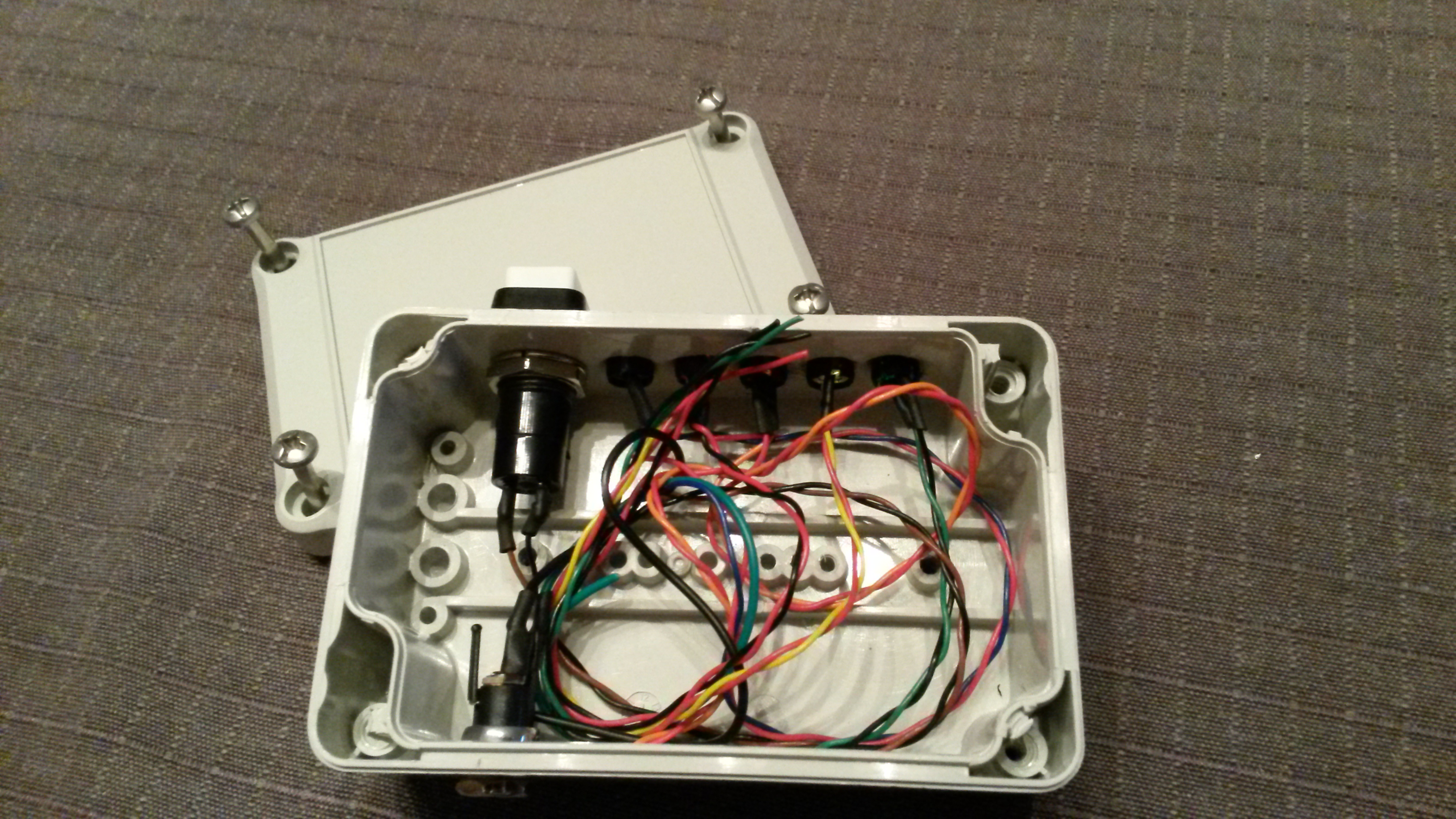

controller indicator lights initial wiring

controller indicator lights initial wiring

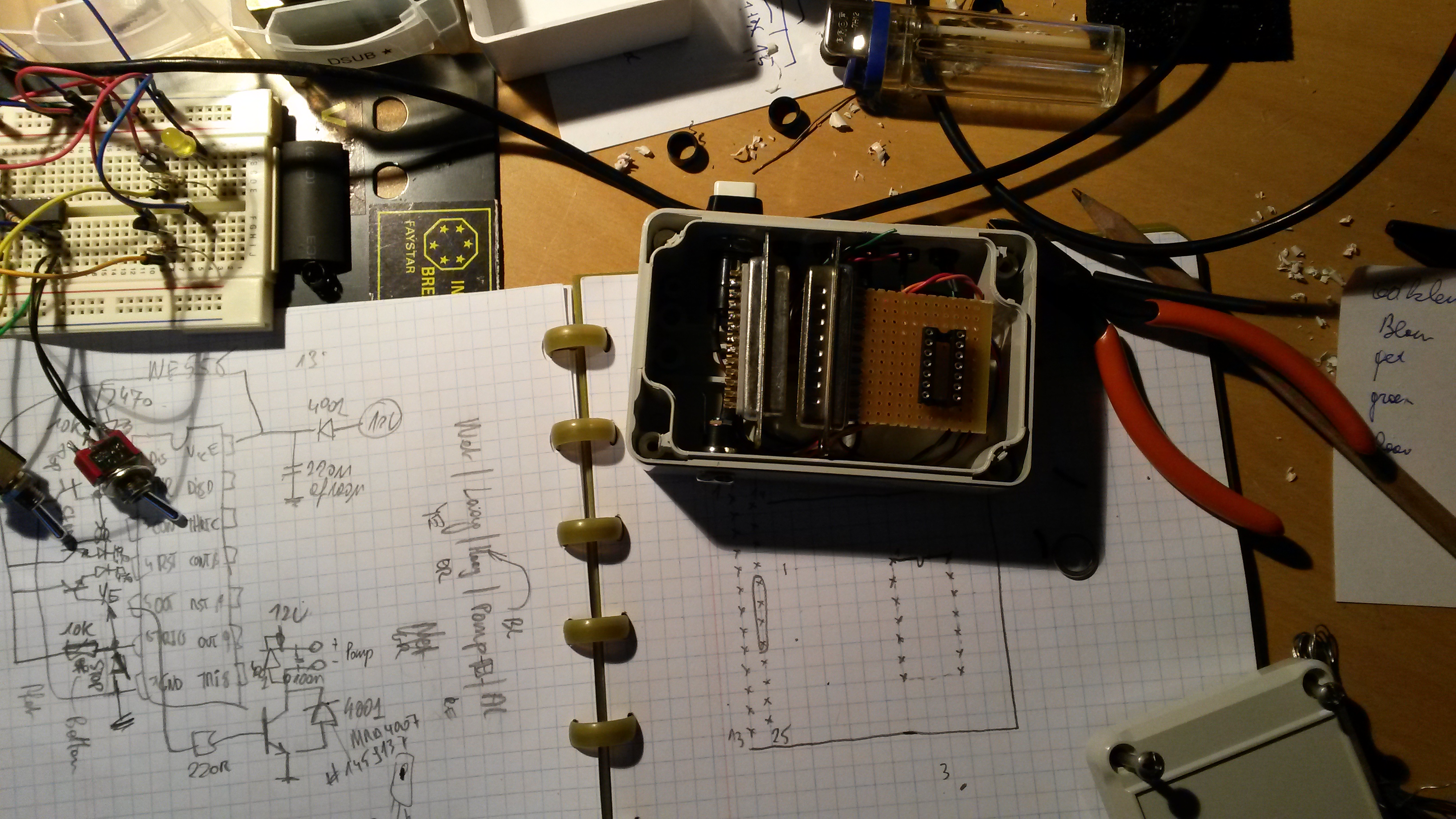

dimensioning pcb

dimensioning pcb

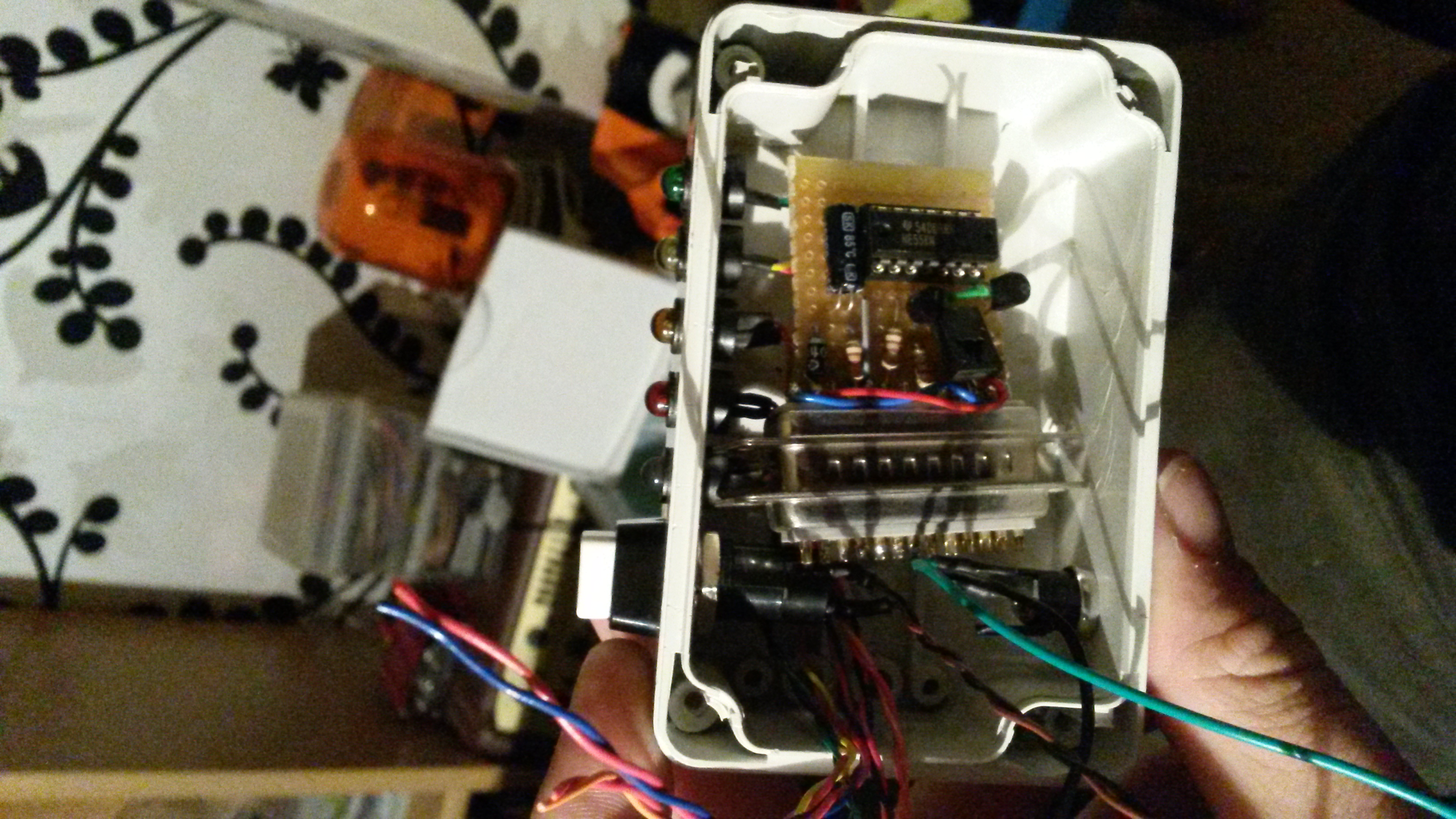

soldering enclosure's internal mating connector

soldering enclosure's internal mating connector

Final check and installation

After installation, everything worked as wished, and with the moto 'if it ain't broken, don't fix it', remains untouched.

January 2020 troubleshooting

In January 2020, we arrived home in the evening after an afternoon out. The blue pump-on led is very bright, so it was clear that the device needed some attention.

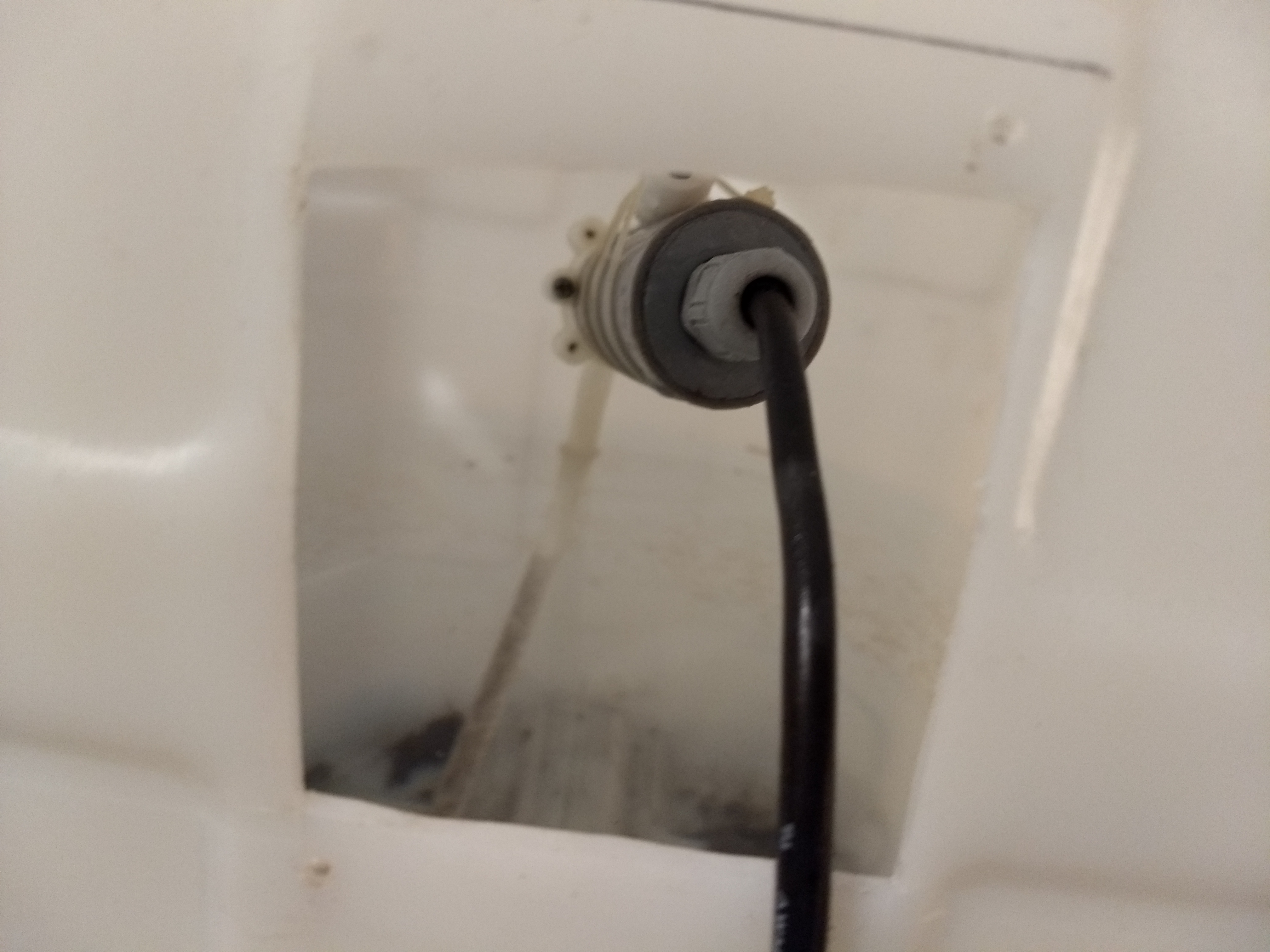

Taking the controller off to better look inside, it's clear that dust and bugs found their way into the water tank.

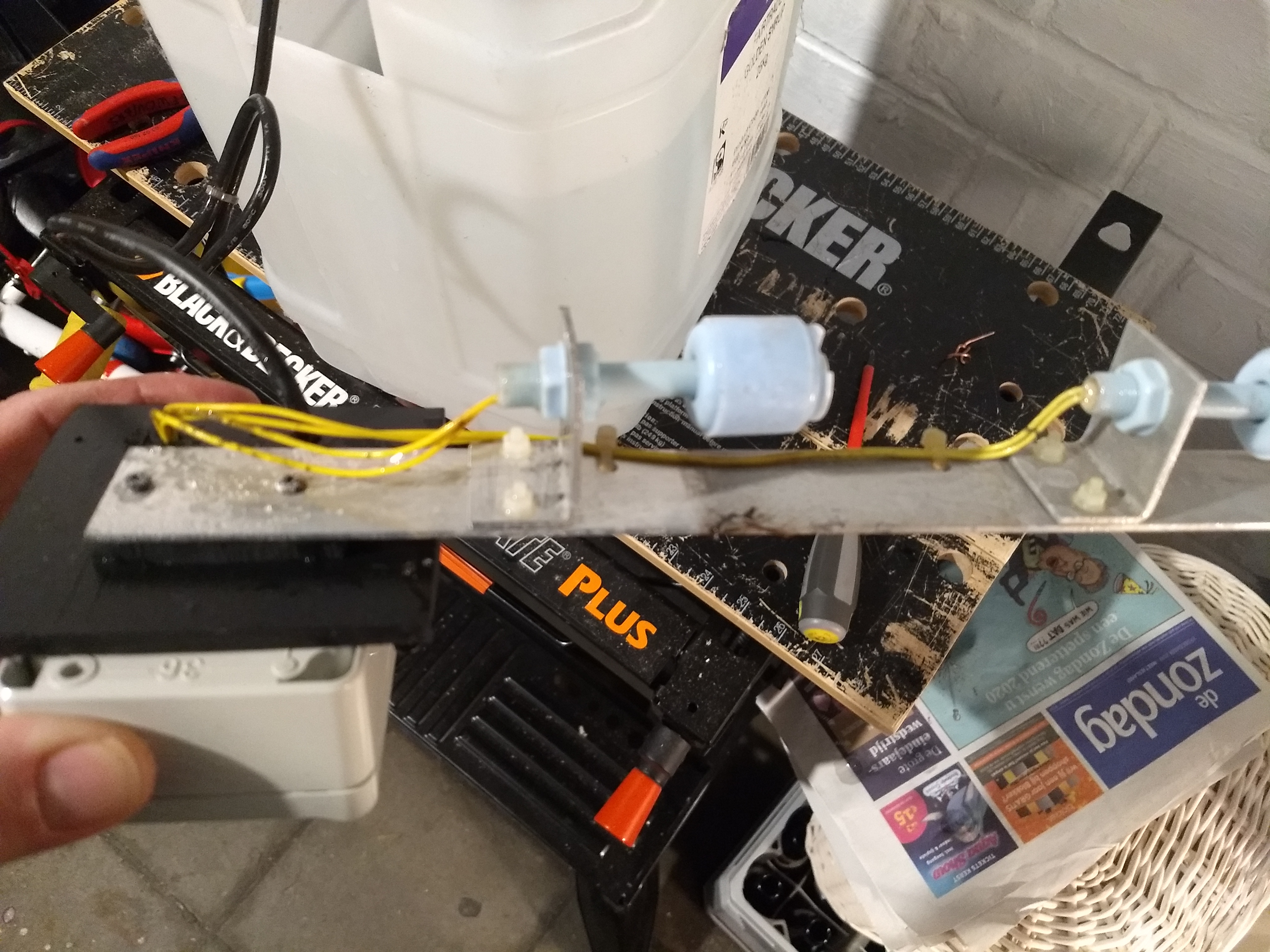

3years worth of dirt

3years worth of dirt

dust and dead spiders

dust and dead spiders

It seems the tube at the pressure side of the pump, leading up to the screw cap's output pipe came off.

view from top, dust and dead spiders

view from top, dust and dead spiders

I used the hose that came with the pump, a soft, rubbery like hose. The hose was completely disintegrated, probably chemically damaged by whatever chemicals are present in the acidic water.

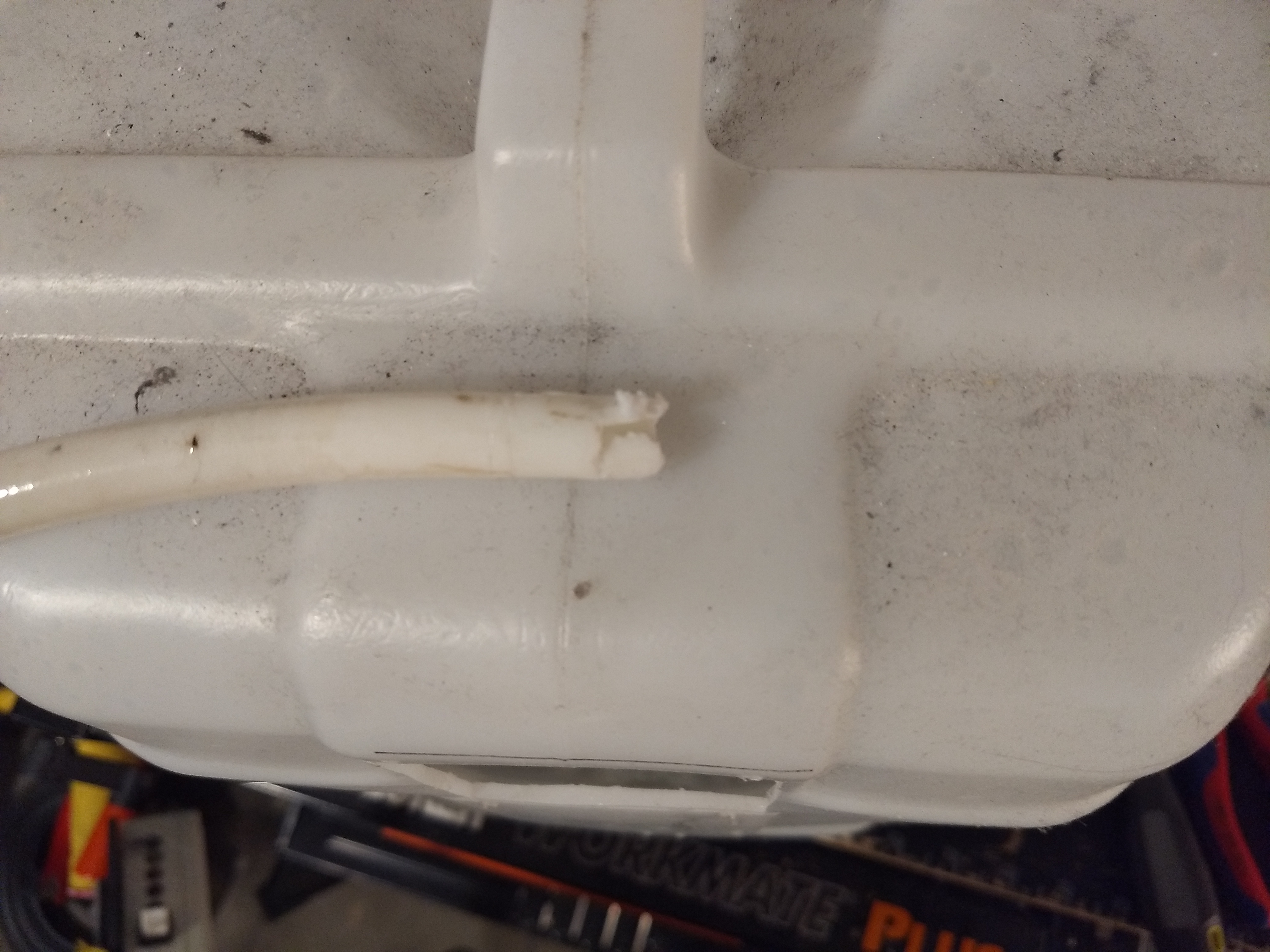

desintegrated silicon? hose

desintegrated silicon? hose

I replaced the hoses in the tank with some that I found in my shed, and everything was working again.
